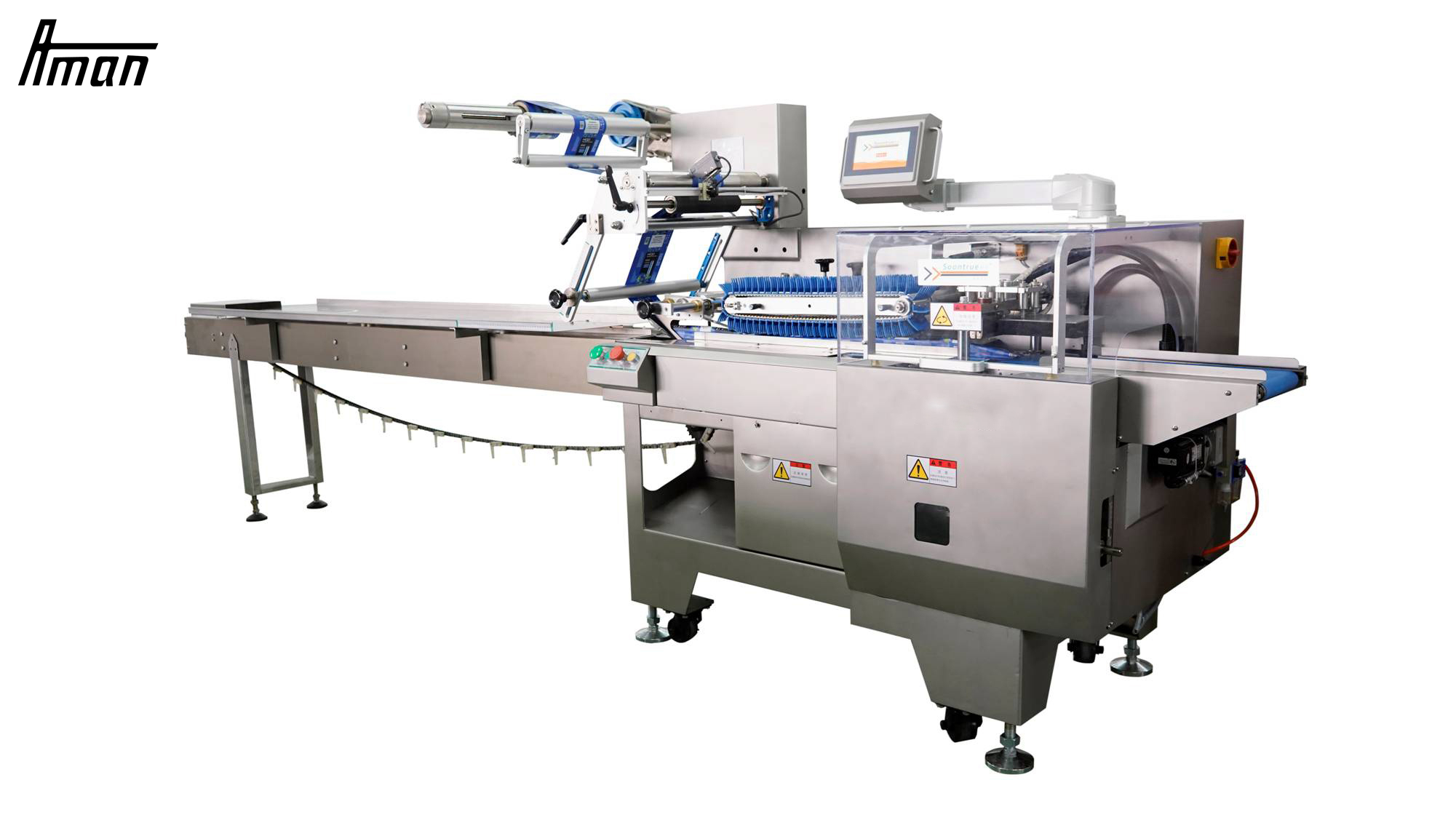

Product Description
Product Paramenters
| Model | Sl150 | SZ180 | SZ580 | SW80E | SZ502 | SZ602 | |
| Bagging size range | L(mm) | 130-400 | 60-300 | 60-350 | 90-450 | 120-550 | 120-500 |
| W(mm) | 30-140 | 35-160 | 35-160 | 35-200 | Max.220 | Max.220 | |
| H(mm) | 35-70 | 5-50 | 5-50 | 5-80 | Max.80 | Max.80 | |
| Packing speed(bags/min) | 30-110 | 30-180 | 30-350 | 30-100 | 30-120 | 25-120 | |
| Packing film width(mm) | 80-400 | 90-400 | 90-400 | 90-500 | Max.500 | Max.600 | |
| Machine weight(kg) | 670 | 400 | 600 | 700 | 1200 | 1500 | |
1.Compact machine structure with smaller footprint area.
2.Carbon steel or stainless steel machine frame with nice appearance.
3.Optimized component design realizing fast and stable packing speed.
4.Servo control system with higher accuracy and flexibility mechanical motion.
5.Different optional configurations and functions meeting different specific requirements.
6.High accuracy of color mark tracking function.
7.Easy to use HMI with memory function.
Application

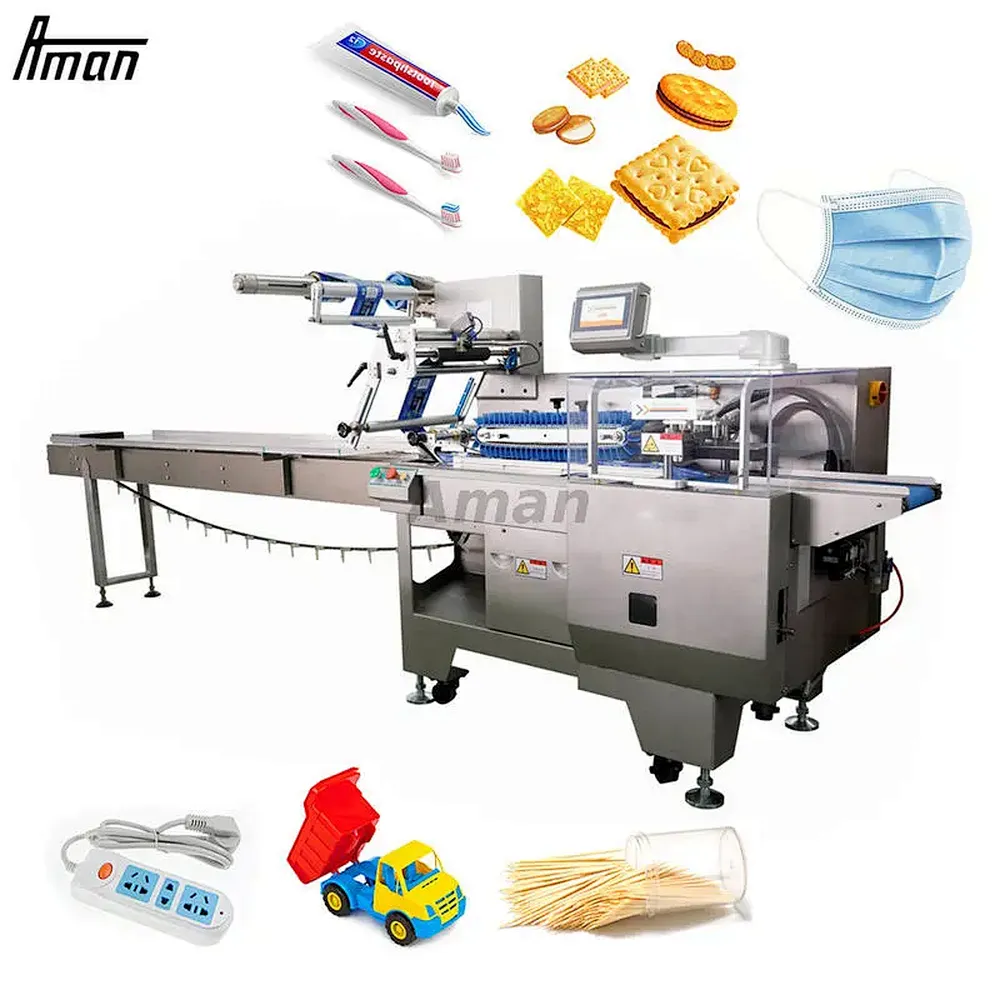

Mainly used for packing various regular and solid products such as cake, bread, biscuit, candy, chocolate, daily necessities,face mask, chemical product, medicine, hardware and so on.
Machine Details

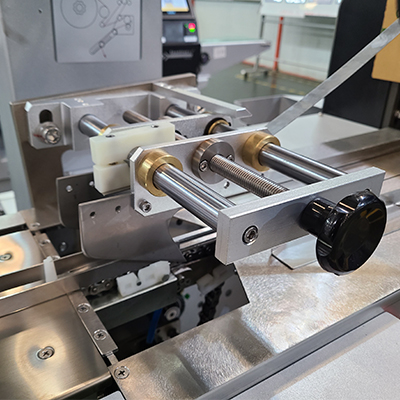

Bag former:
Adjustable bag former with high flexibility for film width 90-370mm

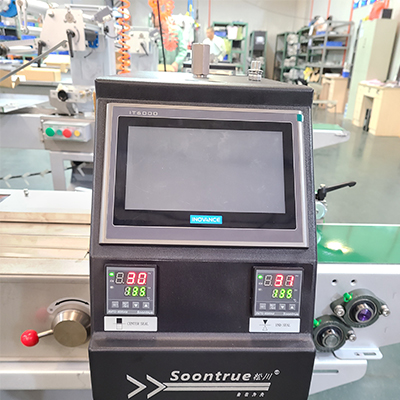

HMI7":
HMI with memory function, easy to operate

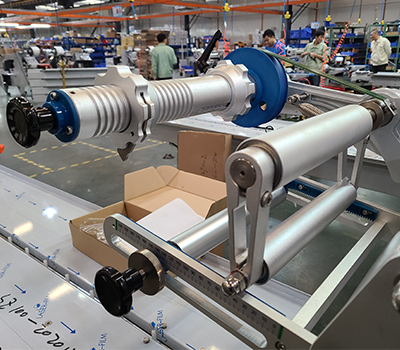

Film loader:
Top mounted film loader, with optional double film loader, auto centering and auto splicing

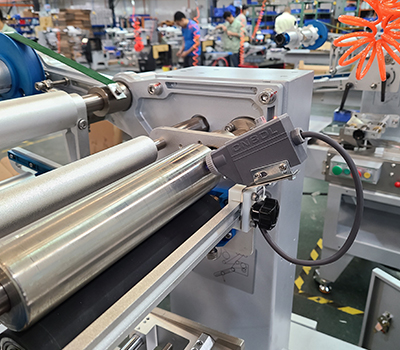

Auto bag length measuring by eye mark tracking

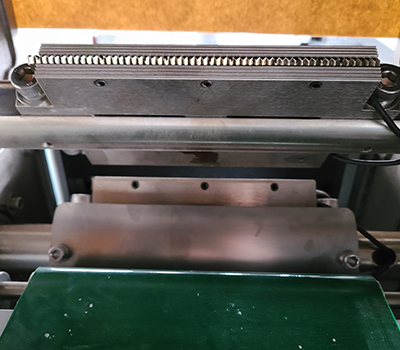

End sealing assembly:
Standard double cutter end sealing, with optional single cutter and triple cutters.

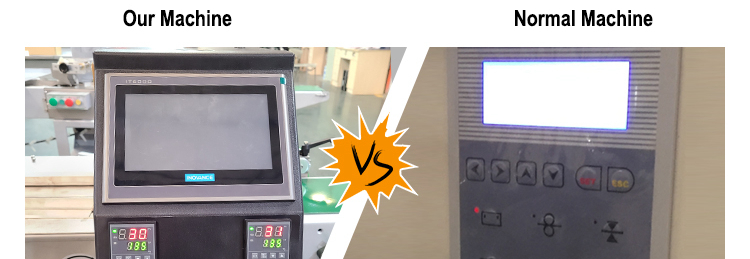

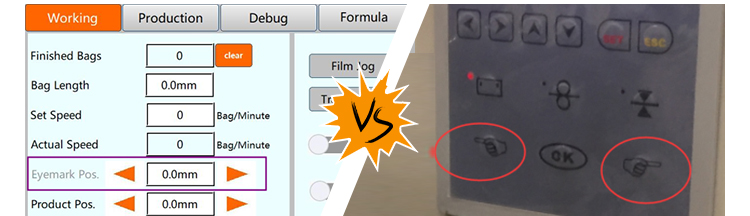

Screen:Most of the daily operations can be performed through the touch screen. The operation interface is simpler and easier to use than the general model, and has a recipe memory function.

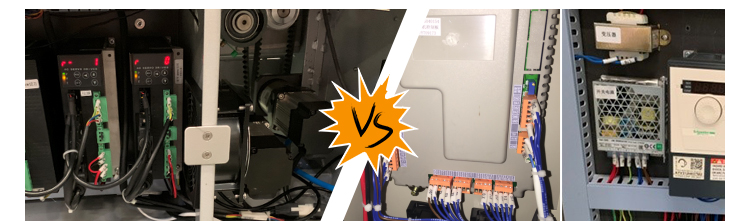

Servo control:3 Servo drive system, compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.

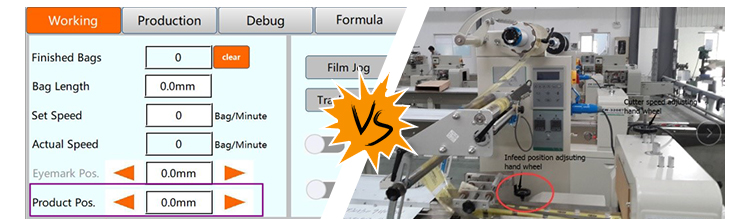

Eye mark position value is adjusted via touch screen. Position value is directly showed on the screen.
In-feed position is adjusted via touch screen. No need to manually adjust the handwheel.

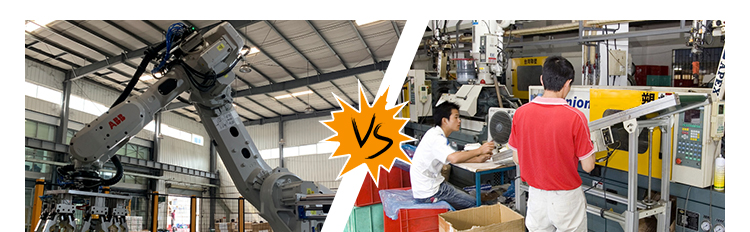

Our factories have advanced and modernized workshop, lead time for small flow packaging machines is greatly reduced from 30 days to 7-15 days compare others factory.
